MARULA PLUS EMTB

Inspired by the incredible Sustainability of Marula trees in Africa.

MARULA PLUS 29* X 2.35" FULL SUS E-MOUNTAIN BIKE.

• POWERED BY BAFANG'S M620 ULTRA 1000W MID DRIVE.
• NATURAL INTUITIVE RIDE FEEL THAT DELIVERS EXACTLY THE AMOUNT OF ASSISTANCE YOU NEED WHEN YOU NEED IT.
• DUAL TORQUE SENSOR TECHNOLOGY NOT ONLY SAVES MORE BATTERY ENERGY ( AV. RANGE 130KM) IT ALSO HELPS YOU SYNERGIZE WITH THE EBIKE'S GEARS AND MOTOR.
• THE RESULT IS A NATURAL RIDE FEEL WITH NO LIMITATIONS IN RANGE AND POWER.
• A PERFECT BALANCE BETWEEN CARDIO EXERCISE AND FUN.

---

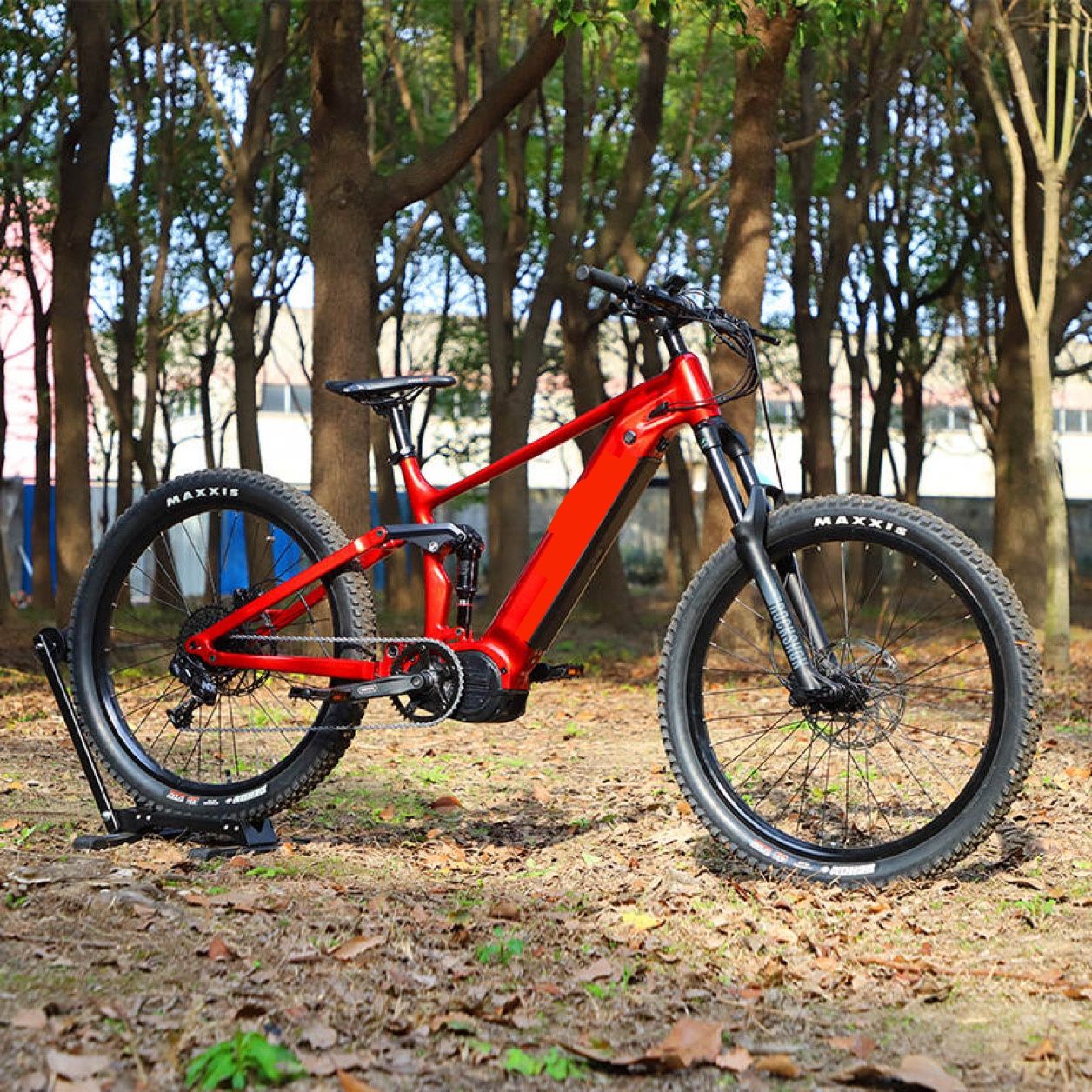

Marula Plus is an aesthetically stylish Weld-free frame Full Suspension electric Mountain Bike.

A 29" eMTB with a Tubeless wheel-set proudly built in Cape Town.

Are you looking for any or all of these benefits when investing in an electric mountain bike:

• High performance e-MTB that not only performs intuitively with dual torque sensor technology but can deliver you with up to 160nM of torque when you need it.
• Aesthetically beautiful designed weld-free frame in a choice of a subtle red Metallic, Metallic Blue or Jet Black.
• The ability to adjust the components to match your ideal sitting position for comfort.
• Wide range of pedal assistance levels so that you have the freedom to ride at any level that suits your level of fitness.
• Delivers battery energy for longer rides such as e-bike touring ( average 130km).
• Ride comfortably on single tracks , jeep tracks , dirt roads , rough or light trails and on-road - front and rear air shocks for cushioning-comfort no matter where you ride.
• Wide range of power levels so that you are covered for the steepest of hills.
• Ability to override torque assist and pedal assist at any time in the case of an emergency or to easily take off immediately from a stationary point ( stuck in sand or from stop street or on steep hill ) by means of a small safety thumb throttle .
• The latest Low maintenance Shimano Cues groupser Choose the group-set that matches you? Thats right , if you have a Sram or Shimano groupset that you'd prefer let us know and can help you.

---

Does Marula Plus sound like the right match for you? Please read on to find out more....

---

• PROUDLY CUSTOM-BUILT & SERVICED IN SOUTH AFRICA.100% SATISFACTION GUARANTEE.
• 100% MONEY-BACK GUARANTEE.
• LIFE-TIME WARRANTY ON FRAME.
• 5 YEAR LIMITED WARRANTY ON BATTERY AND MOTOR.
• 100% MONEY-BACK GUARANTEE.
• A TREE PLANTED IN YOUR FAMILY'S NAME BY OUR NGO PARTNER GREENPOP.ORG.

---

Marula Plus is Built and tested in-house in Cape Town before delivering to you.

Delivered door-to-door Nationwide in South Africa.

Chilled Squirrel builds in small batches of 10 Marula plus eMTB 's at a time to ensure quality customized eMTB delivered to you based on your requirements.

---

#1 The Frame

Material : Alloy 6061 Design : Weld-Free Available Sizes to choose from : Medium 17" , Large 19" , Extra large 21" Artwork: High quality enamel gloss with anti-rust treatment . Colours: Red, Blue or Black. EU Frame safety standard-tested : EN15194

#2 The Motor

Bafang M620 1000w Mid drive. (Torque 160nM). 9 levels of Pedal assist (PAS). Dual Torque sensor technology. Thumb Throttle for emergencies which Overrides Pedal assist. Fully reprogrammable parameters - configure to your own riding preferences.This is one of the beauties of such a versatile ebike kit : the ability to Re-programme the settings to configures one's own personal preferences. Riders own preferences for power, speed , pedal assist ( each of the 9 levels of PAS may be adjusted ) . Via a programming tool to suit each riders style and preferences. Motor is Protected inside the frame from outdoor elements - rain , mud ,direct sunlight and potential knocks from rocks or other objects during riding. Motor Plates further protect against salt spray & water splash - ideal for coastal regions.

# 3 The Battery

BULL li ion battery is automatically locked-In to the frame down-tube when inserting it. Removable when unlocking it with a key ( Duplicate keys are included). Battery specs : New Long Range : Samsung Li ion 18-650 cells 35E 3500 mah 48v 17.5aH ( 840wH ). Average Range 130km in medium level PAS.

# 4 The Components & Group-set

Front Air shocks / Fork : 29" Cross-Country E-bike Ready Suntour XCR Boost Air shock ( Model # SF25-XCR34X-BOOST) - 120mm traveL Rear Air Shock: Suntour RS24-EDGE-X 2CR Rims : Double wall 36 spokes Tubeless Ready 29" Hubs: Solon 36 holes . Chromoly Free body. Sealed bearings. Tyres : Maxxis or Chaoyang Rock Wolf Tubeless Ready 29" X 2.35" Seat post : Chilled Squirrel 350mm QR height adjustment. 31.6mm diameter. Saddle: Memory foam comfort . Cassette: Shimano CUES U-6000 Series CS-LG400-10 - 10 speed 11-48T Derailleur: Shimano CUES RD-U6000-SGS - 10 speed. Gear Shifter : Shimano SL-U6000-R CUES 10 speed. Gear Sensor : electronic cut-off to protect components from unnecessary wear and tear. Brakes: Tektro Hydraulic E-brake Disc brakes E-500 with e-brake cut off safety. Front Cog: Bafang Narrow Wide 42T. Rotors: Tektro Front wheel 180mm / Rear wheel 160mm. Pedals: Wide platform Handlebar : MTB riser handlebar Stem: Chilled Squirrel Grips: Silicon comfort

Please Note :

We are continuously looking for ways to improve performance based on the availability of improved components therefore mechanical specs may change without prior notice with the aim of improving overall product performance improvement .

All accessories shown are for reference only . Additional fees will apply if you wish to have them installed .

GUIDELINE ON FRAME CHOICE:

Riders Height 1.70-1.80m - Medium. Riders Height 1.80-1.90m. Large. Riders Height 1.90m+ . Extra Large.

We want to ensure you are 100% satisfied. 100% Money-Back Guarantee or Exchange. Cancel your order for up to 7 days After receiving Your E-bike.

---

Chilled Squirrel batteries are covered by a 5 year prorated Limited warranty.

T&C's Apply. For details of the Limited Warranty Please Visit This Link.

Our Team cares about the environment .

Working with an Incredible NGO (greenpop.org) we'll plant a tree for you.

You get a certificate indicating GPS co-ordinates for your tree in a Nature reserve. Welcome to visit on your e-bike !

---

FINANCE YOUR MARULA PLUS ? CLICK HERE TO FINANCE
